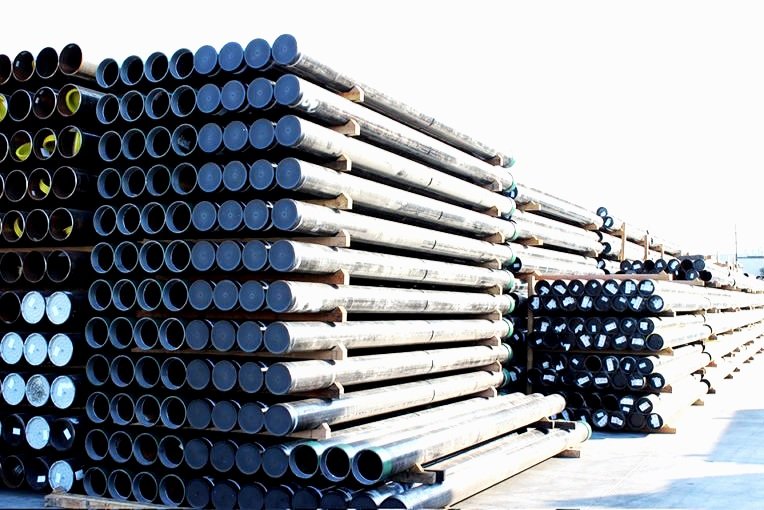

Raw Material - Steel Pipe

Pipes are produced in different schedules of high-quality black steel (ERW - ASTM A53 Grade B). Thread both ends and provided with pipe coupling designed for deep well water pumping requirements. The machined couplings are made of ductile iron or seamless steel (size range from 4-12 inches and in lengths of 10-20 feet.)

Machine Column Pipe Pump

We offer a line of oil lubricated and shaft assemblies and water lubricated open line shaft assemblies. Individual components are sold separately and manufactured to all major pump company specifications.

Pipe Coupling

Column Pipe

Raw Material - Tube

The oil tubes are made of the black steel pipe material with different schedules conforming to AWWA (American Water Works Association) standard. For water lubricated inner column assembly, proper alignment is maintained by butting the pipe ends on the line shaft bearing retainer. The horsepower is transmitted to the bowl assembly through a precision-ground, high tensile strength line shaft, made of ASTM C1045 carbon steel.

Tube

Tube Shafts

Raw Material - Shafts

Shafts are produced with the highest quality raw materials to ensure final products of the highest standard. Precision manufacturing equipment ensures products meet the required specifications of surface finish, straightness, and diameter for line shaft carbon steel C1045.

Shafts

Shaft Coupling
